Air Diverters - Redirect AC Airflow
Deflect hot or cold air from your AC’s outdoor unit away from walls, gardens, or entertaining areas.
Are nearby obstructions causing your outdoor unit to work harder than it should?
Air Diverters (or Air Deflectors) redirect airflow from outdoor AC units upward at a 45° angle – reducing recirculation, wear, and improving performance year-round.
IMPROVE PERFORMANCE – Stops airflow from bouncing off nearby obstructions and recirculating, which can affect unit performance in extreme weather and prolong your unit from reaching ideal indoor temperatures.
PROTECT GARDENS – Shields plants from heat emitted by outdoor units.
IMPROVE COMFORT – Directs hot air away from balconies or entertaining areas.

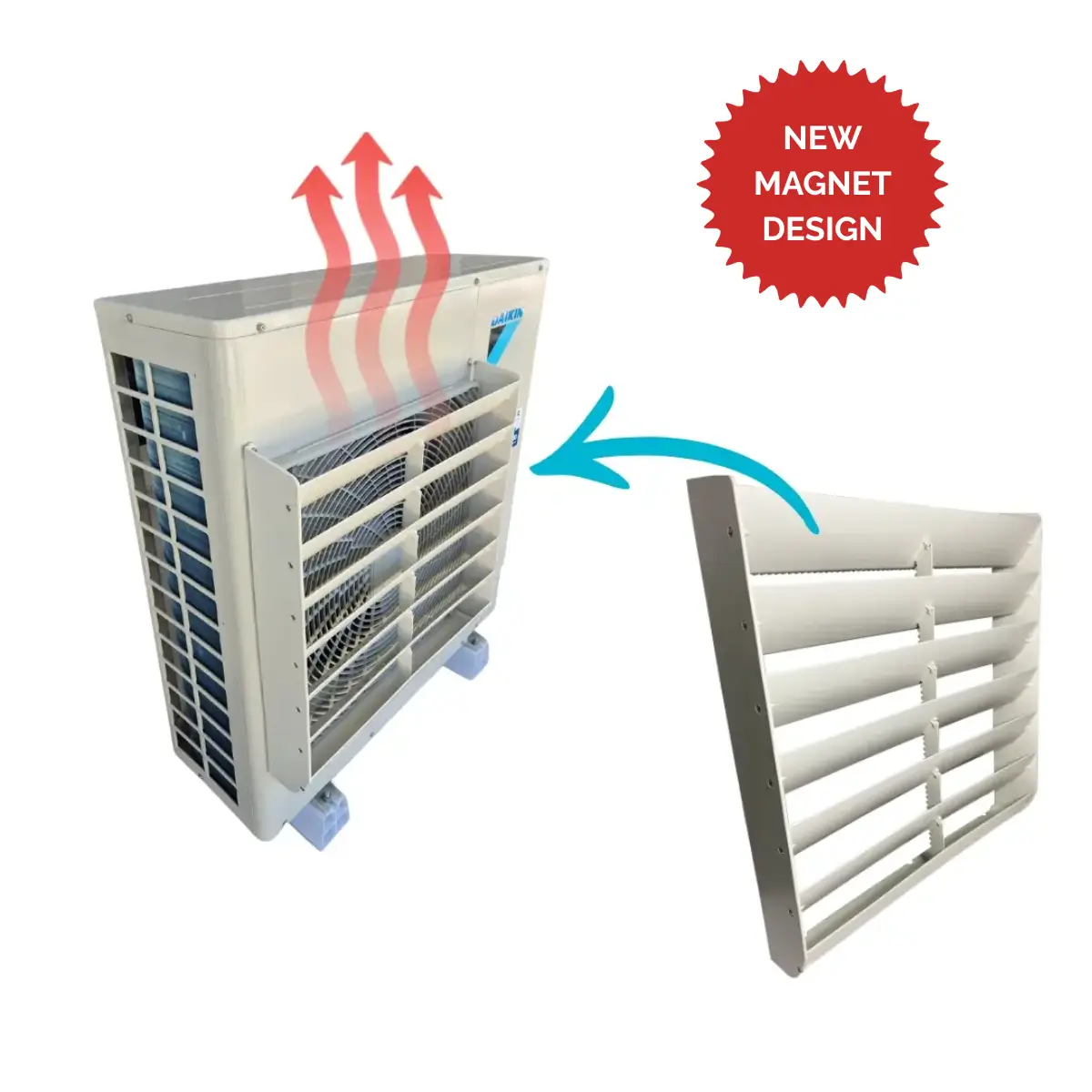

QUICK INSTALL – No complex installation! Simply add the magnetic fixings and place diverter on the outdoor unit.
The Leading Supplier Of Air Diverters In Australia
Which Size Air Diverter Should I Purchase?
Watch our video on how to choose the right diverter – Click Here

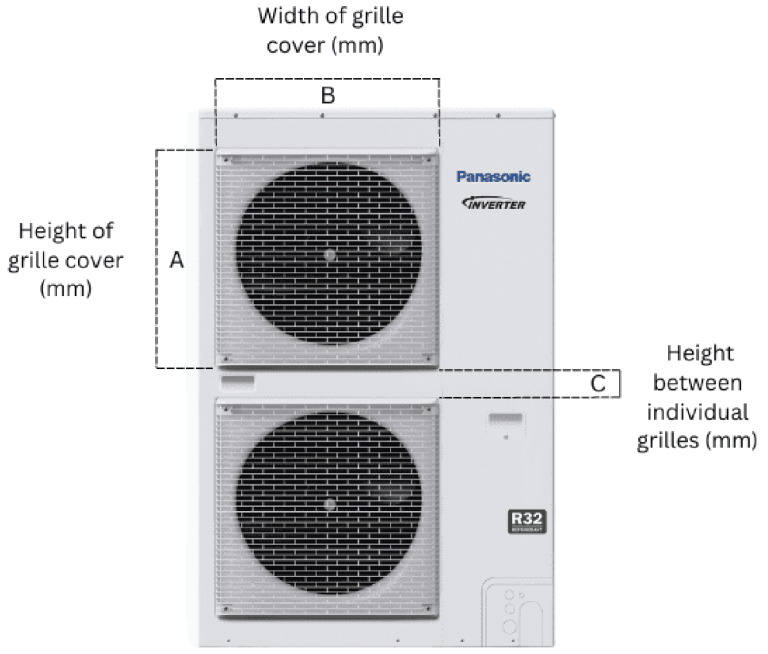

Before purchasing an air diverter, measure your outdoor unit’s grille(s). Using the diagram, measure:
A = grille height
B = grille width
C = gap between grilles (for dual‑fan units)
Each magnetic fixing is 16 mm wide and can be fitted on the inside or outside of the grille. Subtract 16 mm from the usable grille width for every magnet placed inside. For example:
Both magnets inside: subtract 32 mm from the diverter width
One inside, one outside: subtract 16 mm from the diverter width
Both outside: usable width = full diverter width
A slightly shorter diverter height is acceptable — the lower blades will still catch airflow and direct it upward. If you need two diverters for a dual‑fan unit, make sure (diverter height 1 + C + diverter height 2) does not exceed the unit’s total height.
Note: check for any beveled edges or obstructions next to the grille when deciding magnet placement.
Assembled Air Diverters
Assembled Air Diverters arrive ready to install for a quick, fuss-free setup. Simply attach the supplied magnets to the diverter and position it on your outdoor unit.
Air Diverter 6 Blade – 540h x 608w
From: $163.00Select options This product has multiple variants. The options may be chosen on the product pageAir Diverter 6 Blade – 546h x 528w
From: $140.00Select options This product has multiple variants. The options may be chosen on the product pageAir Diverter 7 Blade – 600h x 608w
From: $170.00Select options This product has multiple variants. The options may be chosen on the product pageAir Diverter 5 Blade – 489h x 468w
From: $121.00Select options This product has multiple variants. The options may be chosen on the product page
Disassembled Air Diverters
Disassembled air diverters are a cost-effective option ideal for easy transport and storage. Supplied flat-packed, they reduce shipping costs and are perfect for customers who prefer DIY assembly. With simple instructions included, they’re quick to put together and offer the same performance and durability as the assembled version—making them a smart, budget-friendly choice. View assembly video.
Air Diverter 6 Blade – 540h x 608w Disassembled
From: $116.00Select options This product has multiple variants. The options may be chosen on the product pageAir Diverter 7 Blade – 600h x 608w Disassembled
From: $120.00Select options This product has multiple variants. The options may be chosen on the product pageAir Diverter 6 Blade – 546h x 528w Disassembled
From: $99.00Select options This product has multiple variants. The options may be chosen on the product pageAir Diverter 8 Blade – 712h x 700w Disassembled
From: $140.00Select options This product has multiple variants. The options may be chosen on the product page
Videos
FAQs
There is no difference. We refer to both on the website because the term is used interchangeably in the industry.
Air diverters may improve performance when outdoor units are located close to boundary fences/walls or other obstructions. When this is the case, hot air in summer can recirculate, increasing the ambient temperature around the outdoor unit and causing the unit to worker harder. Similarly, in winter, the circulating cold air can prevent the unit from moving out of defrost mode and delay the unit heating time indoors.
Our air diverters deflect the air away at a fixed 45 degree angle.
Highly durable plastic meant to withstand Australian climate conditions.
If you have a dual fan unit, you will need to purchase two air diverters, one for each fan.
Our air diverters are designed to accommodate multiple brands and grille sizes, however there is no one-size-fits-all diverter, and we have different diverter sizes available. Please measure the grilles on the outdoor unit to find the right size. On occasion, customisation may be required if units have beveled edges or unusual grille sizes. If concerned, please email us your grille dimensions so that we can assist you in making the correct purchase.
No, the product is designed for an easy installation. If you have any concerns, we are happy to guide you through the installation process, or you can view our installation video above, for a step-by-step guide.
Assembled diverters are prebuilt, and only require you to adjust the preinstalled magnets, if necessary. The magnets come fitted on the inside of the diverter, but can be adjusted to sit on the outside or alternative sides, depending on what application is suitable for your unit.
Disassembled diverters come flat-packed, and require assembly (approx 10min with an electric screwdriver), but they are more cost effective and cheaper to ship.
Air diverters can be used for ducted and split system outdoor units. They are also commonly used on pool heat pumps.
Please allow 3-10 business days for delivery. This estimate is dependent on whether your shipping address falls in a metro or country area. Most air diverter orders arrive within 5 business days.
Yes, we offer shipping throughout Australia for our entire air diverter range.
Yes, bulk discount is available, along with trade discount for our registered trade customers. If you would like to register with us, please apply for a trade discount on the Trade Registration page.
